AN ISO 9001:2000 Company

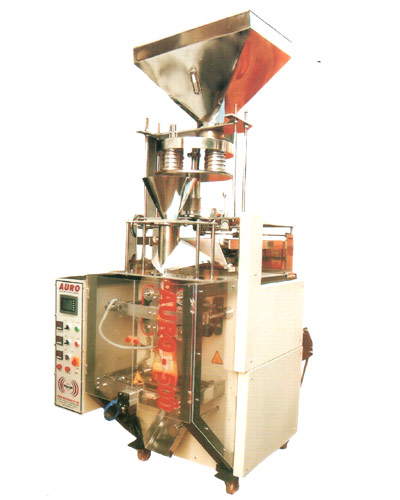

Model no. amp 500

Features & Advantages
Packing Material
Heat salable Laminated films
Roll Width Max = 525 mm
Min. = 120 mm
Pouch Type Center seal pouch
Pouch Dimension Width = 50-200 mm
Height = 65-300 mm
Electrical Supply 230 V/A.C./Single
Phase / 50 Hz.
Power consumption 3KW
Compressed Air Required 6 CFM @ 6 bar
Production Rate 60 Shots per Minute.
(Varies with the nature of product & filling range.)
Weight 750 Kg. (Approx.)
Machine Dimension

Length : 1050mm
Width : 990mm
Height : 1360mm
Film Quality Laminated Roll, Foil, Bopp

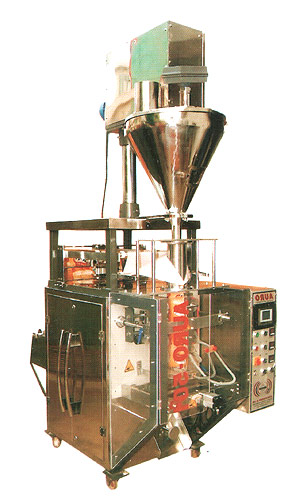

Model no. amp 501

Features & Advantages (AMP 501)
Packing Material
Heat salable Laminated films
Roll Width Max = 525 mm
Min. = 120 mm
Pouch Type Center seal pouch
Pouch Dimension Width = 50-200 mm
Height = 65-300 mm
Electrical Supply 440 V/A.C.
3Phase
Power consumption 3KW
Compressed Air Required 6 CFM @ 6 bar
Production Rate 30-40 Shots Per Minute
Weight 750 Kg. (Approx.)
Machine Dimension

Length : 1050mm
Width : 990mm
Height : 1360mm


Optional Attachment
  1. The fully Automatic collar type Form fill & Sealing Machine is an intermittent machine designed for the efficient packing of product in seal pouches upto lkg.
  2. Ease of operation and mai~tenance.
  3. it can be synchronized with any automatic weighing I filling system and is suitable for product like powders and
    granules viz.. Cornflakes, chips, rice, flour, salt, sugar, mehndi, ready to eat snacks etc.
  4. The machine is suitable for all type of heat sealable laminated films such as polyester polythene laminated film, aluminum foil, Bapp etc.
  5. Impulse heat sealing system can also be provide for sealable virgin films.
  6. The machine is versatile and can be easily changed over from one pouch size to another.
  7. All contact pans are made up of food grade stainless steel SS 304 316.
  8. Pouch repeat can easily be adjusted from
    25mm-300 mm.
  9. This machine can be incorporated with hot foil coding device to print information's such as PKD, MRP, B.N. Etc.
   Note: Augar base machine electrical supply 3 phase.
