AN ISO 9001:2000 Company
Horizonial flow wrap biscuit

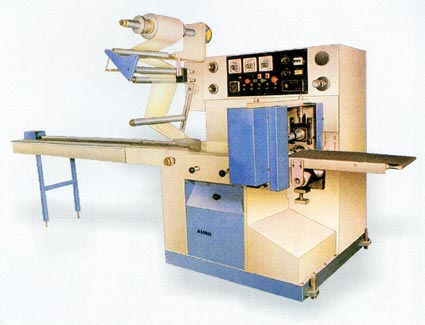

Model no. amp 700
Technical Specification (Model No. AMP 701)
Model AMP701
Packing speed 20-60 bags per min.
Bag size W 80-200mm | L 50-300mm
Heater/Voltage

4KW/220V / 50-60HZ
Bag making mode

Pillow type bag, Stand type bag, Punch device, Link bag device
M/C dimensions 1720(L)x 1030(W) x 2254(H)
Maximum length of measuring

2000ml
Maximum width of packing film 420mm
Salient Features
  1. Suitability to pack variety of solid shapes & Material.
  2. Capability to pack variety of sizes with high speed & Safety.
  3. Pouch cut-off length can be calibrated by pitch gears.
  4. All contact parts are made of stainless steel.
  5. With design registration systems.

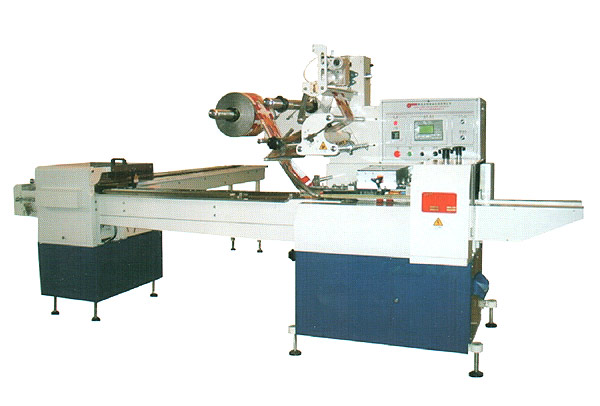

Model no. amp 703
Features & Advantages (AMP 703)
  1. For Biscuits, Rusks and any other bakery product.
  2. Feeding style: Cross Conveyor/Single Feeder/Manually.
  3. Optional Attachment: Batch Coding, Out feed Conveyor.
  4. It can be easily changed 2 line to 3 line, 3 line to 4 line.
  5. The machine is generally called family pack machine equipped with Batch Coding, PLC, AC drive and Photocell.
  6. Easy Operational and maintenance.
Packing Material
Any heat sealable laminated film such as polyester/poly, BOPP/Foil/Poly, heat sealable BOPP, Pearlised BOPP attached.
Machine Capacity
The capacity of the machine is dependent on the size of commodity to be wrapped. The speed will vary from 20 to 200 packets per minute.
